Two-Stage Transmission Gearbox

Mar 1, 2025 · 1 min read
projects

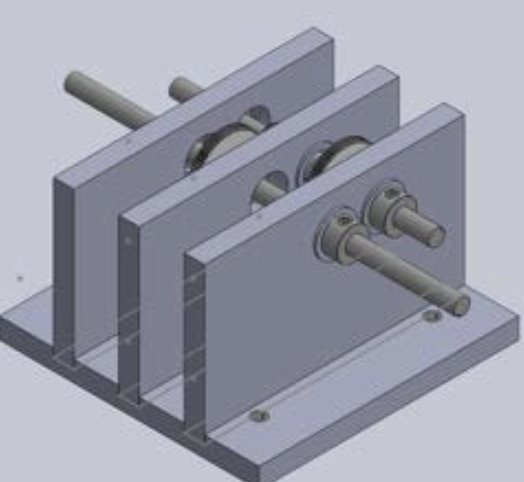

Physical gearbox test setup Transmission gearbox CAD model

Mechanical Design · Transmission · 2025

I worked on a two-stage spur-gear transmission design by connecting MATLAB performance calculations, gear-ratio selection, SolidWorks CAD, keyed shaft and bearing design, machining planning, and PDR/CDR design review documentation.

SolidWorks MATLAB Gear trains Machining PDR/CDR

Project Work

This project focused on designing and reviewing a compact two-stage transmission. I worked on MATLAB performance modeling, gear-ratio selection, speed/torque/efficiency estimates, SolidWorks CAD, keyed shafts, bearings, gears, shaft supports, machining constraints, and PDR/CDR design review materials.

Technical Stack

MATLAB SolidWorks Gear trains Bearings Keyed shafts Machining Design reviews
